Case Cooler Master CMP 520 Mid Tower (ATX, ARGB Fans)

Cooler Master CMP 520 Mid Tower Case

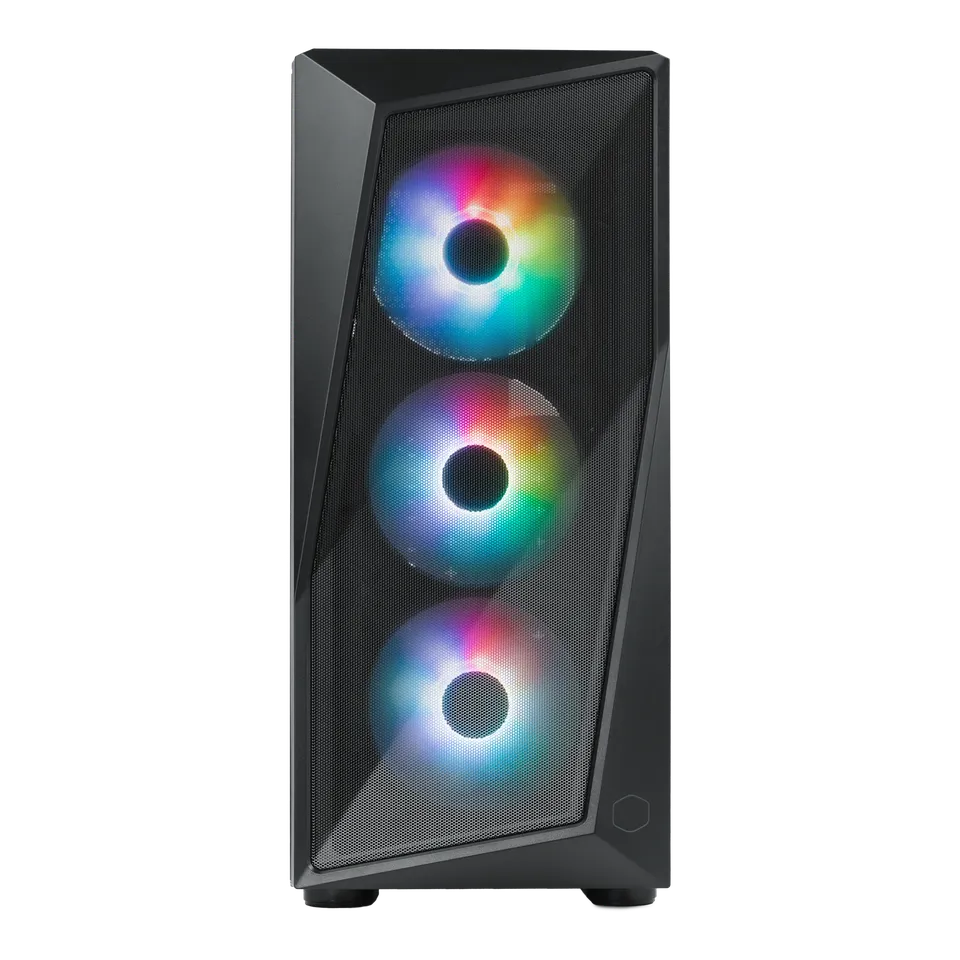

The Cooler Master CMP 520 is a mid-tower ATX case designed to combine aesthetic appeal with efficient airflow. Its asymmetrical front panel showcases three pre-installed 120mm ARGB fans, creating a striking visual centerpiece for your build. :contentReference[oaicite:0]{index=0}

Key Features:

• ARGB Fans Included: Comes equipped with three 120mm ARGB fans, enhancing both cooling performance and visual effects. :contentReference[oaicite:1]{index=1}
• Mesh Geode Front Panel: Features a mesh front panel that promotes optimal airflow and efficient dust filtration. :contentReference[oaicite:2]{index=2}
• Versatile Cooling Options: Supports up to six 120mm fans and accommodates radiators up to 280mm in the front panel, allowing for flexible cooling configurations. :contentReference[oaicite:3]{index=3}
• Breathable Power Supply Shroud: Includes a ventilated PSU cover that supports various PSU orientations while maintaining a clean interior. :contentReference[oaicite:4]{index=4}
• Tempered Glass Side Panel: Equipped with a tempered glass side panel to showcase your internal components. :contentReference[oaicite:5]{index=5}
• Efficient Cable Management: Offers 18.5mm of cable routing space behind the motherboard tray for organized cable management. :contentReference[oaicite:6]{index=6}

Specifications:

• Form Factor: Mid Tower
• Motherboard Support: Mini ITX, Micro ATX, ATX
• Dimensions: 439mm (L) x 204mm (W) x 463mm (H) including protrusions; 432mm (L) x 204mm (W) x 448mm (H) excluding protrusions
• Expansion Slots: 7
• Drive Bays:
  • 2x 2.5" / 3.5" combo internal bays
  • 2x 2.5" internal bays
• I/O Ports:
  • 1x USB 3.2 Gen 1 Type-A
  • 1x USB 2.0
  • 1x 3.5mm headset jack (audio + mic)
• Pre-installed Fans:
  • 1x CF120P ARGB fan at the front
  • 2x CF120S ARGB fans at the front
• Fan Support:
  • Front: Up to 3x 120mm or 2x 140mm fans
  • Top: Up to 2x 120mm or 2x 140mm fans
  • Rear: 1x 120mm fan
• Radiator Support:
  • Top: 120mm or 240mm radiators (RAM height below 35mm)
  • Front: 120mm, 140mm, 240mm, or 280mm radiators
  • Rear: 120mm radiator
• Clearance:
